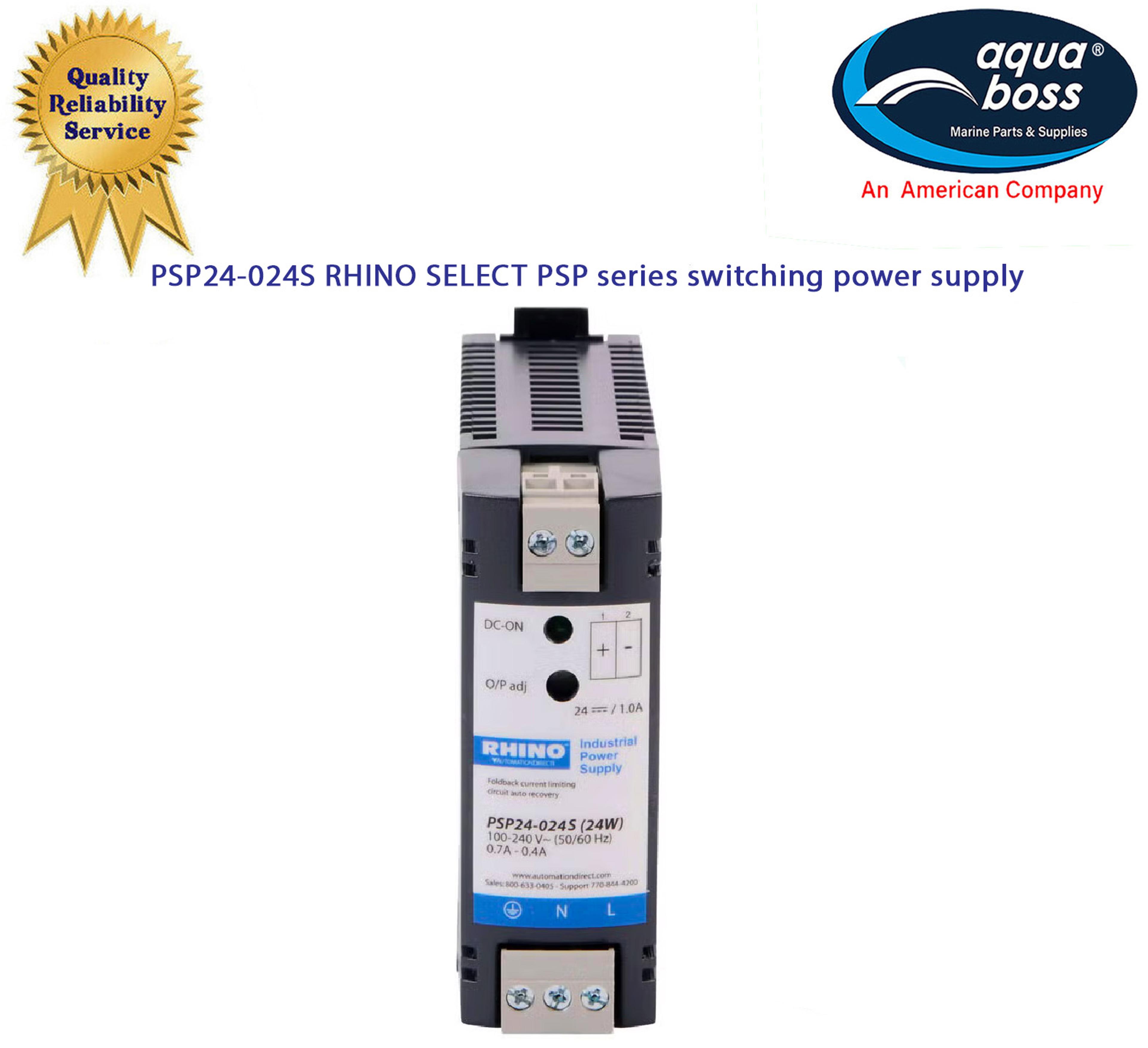

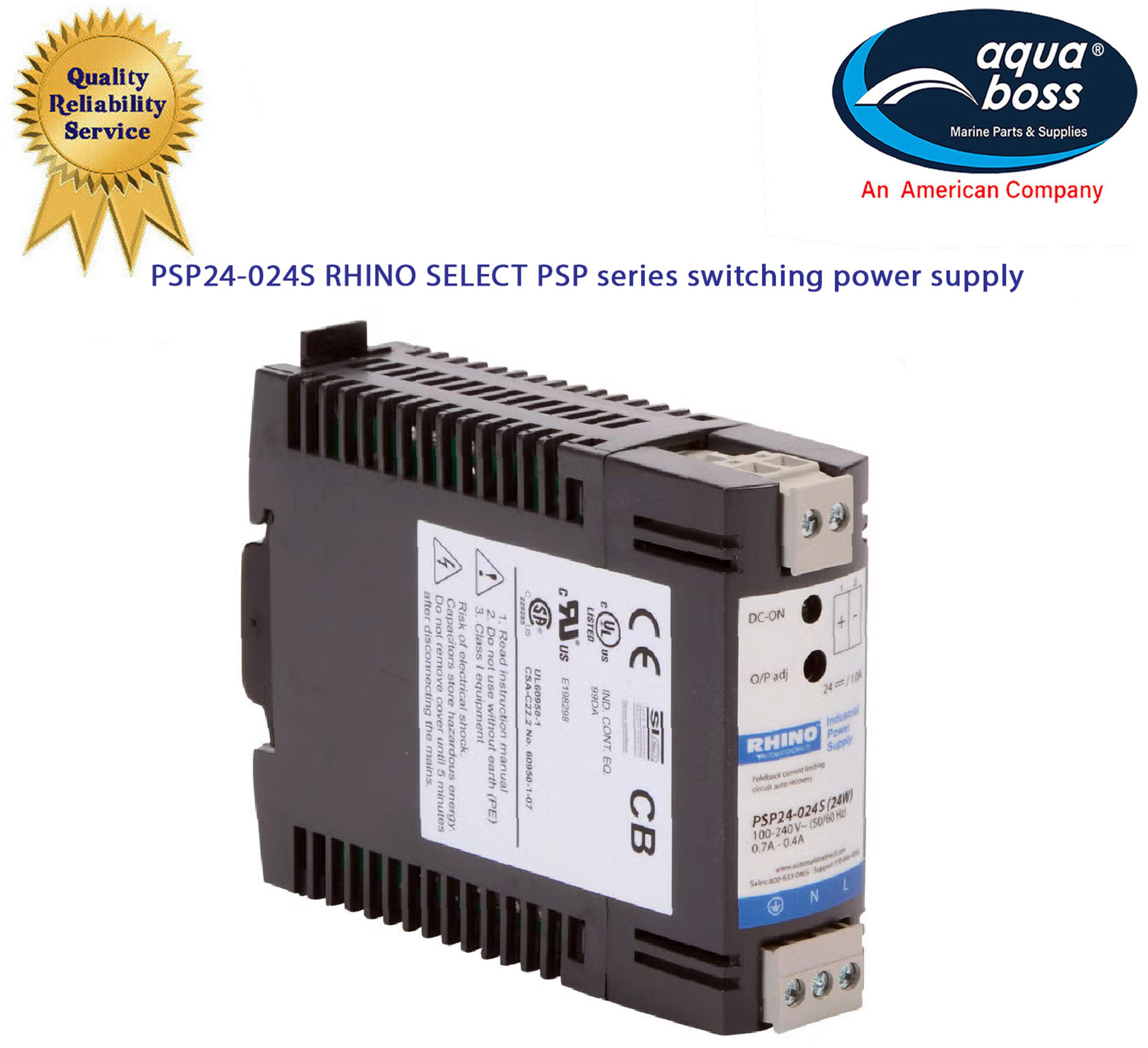

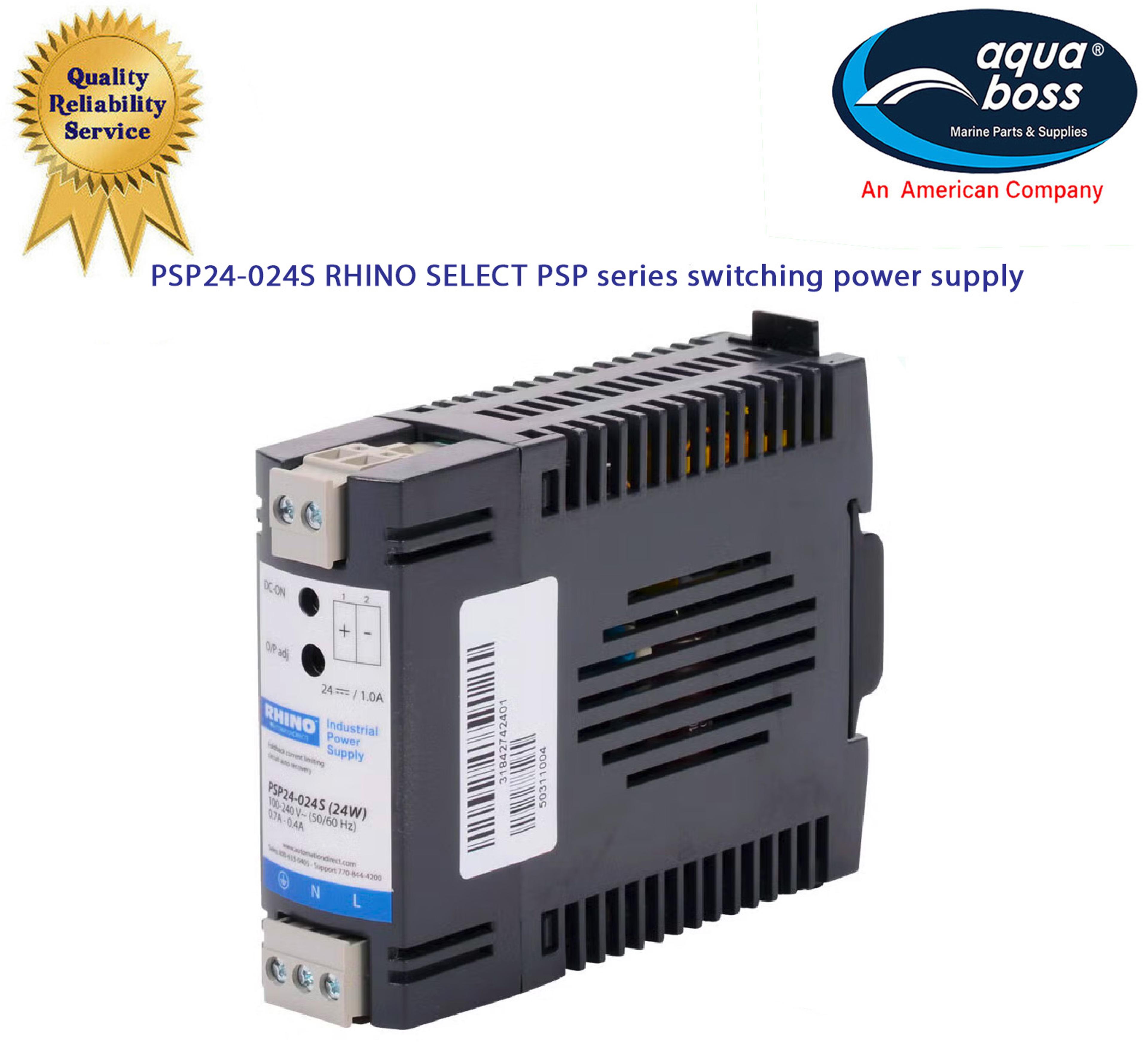

PSP24-024S RHINO SELECT PSP series switching power supply
SKU: H-WIRE
$68.95
Only 1 left
PSP24-024S RHINO SELECT PSP
Estimate shipping
Secure Stripe checkout
Ships from our Michigan shop
Factory-certified support
Questions? Call the shop
Description
RHINO SELECT PSP series switching power supply, 24 VDC @ 1A/24W. Ships from Michigan. We try to ship same day as ordered or the next business day.
PSP
Power Supply Type Switching
Efficiency 85% @ 115 VAC and 230 VAC
Output Configuration Single output
Output 24 VDC @ 1A/24W (adjustable)
Output Voltage Range 24-28 VDC
Input voltage range 85-264 VAC/85-375 VDC
Input Voltage Selection Type Automatic
Number of Input Phases 1
Protection Type(s)
overvoltage
short circuit
overload
Remote On/Off No
Voltage Monitoring Yes
Enclosure Type Enclosed
Housing Material Plastic
IP Rating IP20
Mounting 35mm DIN rail or chassis
Connector Type Removable screw terminal
NEC Class 2 No
Integrated UPS Battery Control No
Operating Temperature -10 to 70 deg C
Includes DIN rail insert for panel mounting
