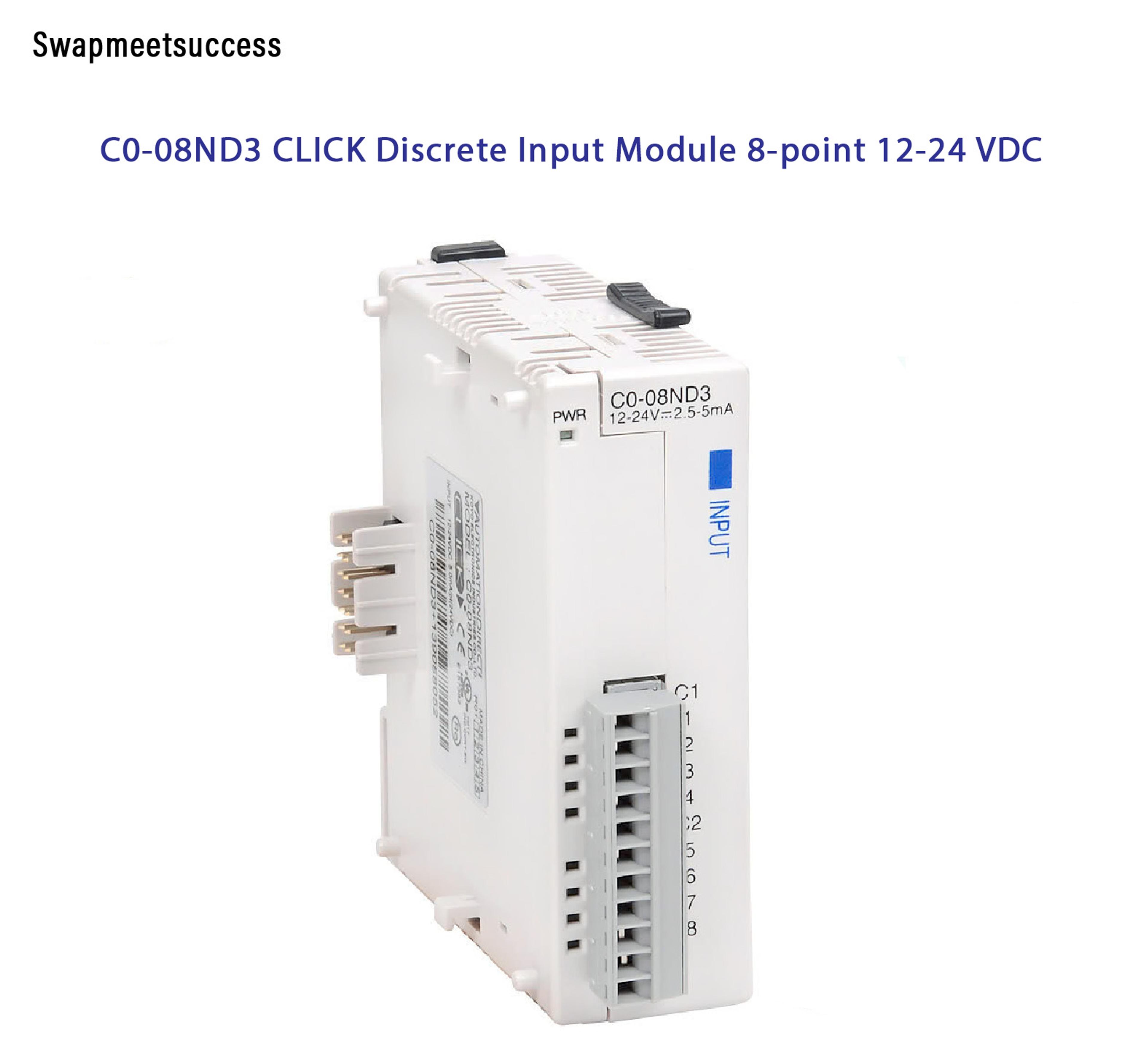

C0-08ND3 CLICK Discrete Input Module 8-point 12-24 VDC sinking/sourcing. 2 isolated commons. 4 Points per Common. Ships from Michigan. We try to ship same day as ordered or the next business day.
Inputs per Module; 8 (Sink/Source)
Operating Voltage Range; 12–24 VDC
Input Voltage Range; 10.8–26.4 VDC
Input Current Type; 5 mA @ 24 VDC
Maximum Input Current; 7 mA @ 26.4 VDC
Input Impedance; 4.7 kΩ @ 24 VDC
ON Voltage Level; > 8.0 VDC
OFF Voltage Level; < 3.0 VDC
Minimum ON Current ; 1.4 mA
Maximum OFF Current; 0.5 mA
OFF to ON Response Max; 3.5 ms, Typ 2 ms
ON to OFF Response Max; 4 ms, Typ 2.5 ms
Status Indicators Logic Side; (8 points, green LED)
Power Indicator; (green LED)
Commons; 2 (4 points/common) Isolated
Bus Power Required; (24 VDC) Max. 30 mA (All Inputs On)
Terminal Block Replacement; AutomationDirect p/n C0-8TB
